Darche 180 Freestanding Awning
Not only is the Eclipse 180 Freestanding LED Awning built to last, but it's also loaded with features that will raise the next outdoor adventure to the next level.
or 4 payments of $297.25 with
Learn more
Calculate Shipping:
At Darche, the aim is to ensure that the gear can stand up to the tough Australian environment. That’s why the Eclipse 180 Freestanding LED Awning was put through a comprehensive 30-day wind-testing regimen, with everything from gentle breezes to severe gales being thrown at the awning.
In the testing, the Eclipse 180 Freestanding LED Awning held up in winds over 50km/hr, and even after being damaged, it was able to repeat the same performance with repairs. The Omega OM-CP-WIND101A wind speed data logger system, calibrated with data from the Australian Bureau of Meteorology, was used to measure wind speeds every second during the testing. For more details on the wind meter, check it out here.
Based on results and observations gained over the wind testing period, the Eclipse 180 Freestanding LED Awning is rated up to 30km/hr winds whilst freestanding. However, the recommendation is to always deploy the included poles and tie down the awning properly using pegs and guy ropes as Mother Nature is unpredictable and the investment should be protected.
Not only is the Eclipse 180 Freestanding LED Awning built to last, but it's also loaded with features that will raise the next outdoor adventure to the next level. There are dimmable LED strips neatly integrated into the rafter arms that also include an amber setting to avoid attracting insects. The innovative two-piece backing plate design allows for a fully-enclosed transit cover, maximizing weather resistance while still retaining the ability to easily move the awning from one vehicle to another. There are also 8mm sailtrack channels built into the backing plate, giving the ability to attach a wide range of accessories to the awning.
For even more protection from the elements, awning wall kits that increase coverage from 8.2 to 16.5 m² are also available.
*Please note that if this awning is mounted to a roof top tent, the poles must be used at all times to avoid damaging the roof top tent.
*Ensure that the roof mounting system is fit for purpose. The supplied mounting brackets suit most commercially available roof racks or steel basket setups, however, for some platform racks, long brackets (T050801751B) may be required.
(T050801739)
Features
- Over 2 years of development and testing
- Wind rated to 30 km/hr in freestanding mode
- 8.2m² of cover

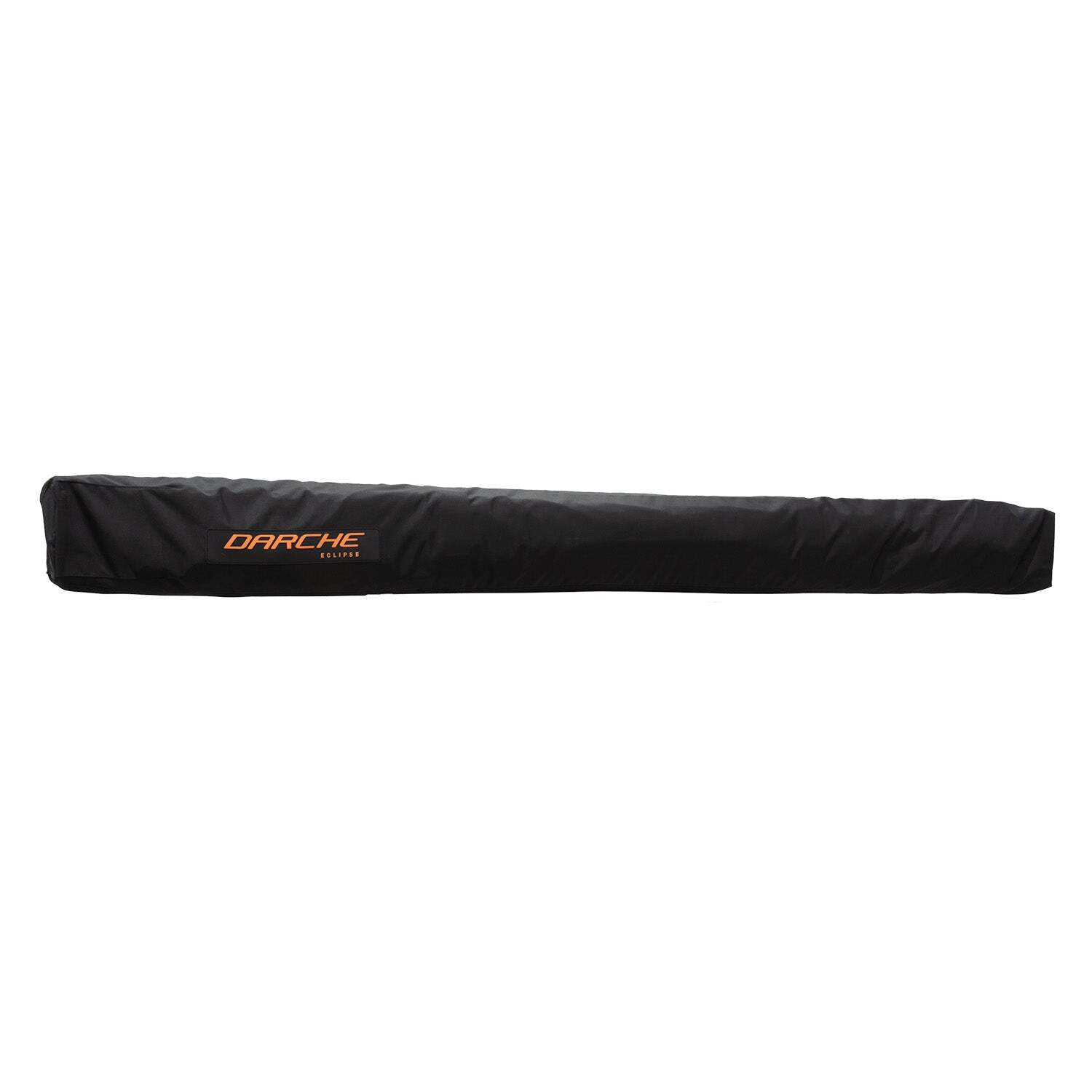

- Fully-enclosed transit cover and two-piece backing plate design maximises weather resistance while still retaining the ability to easily move the awning from one vehicle to another

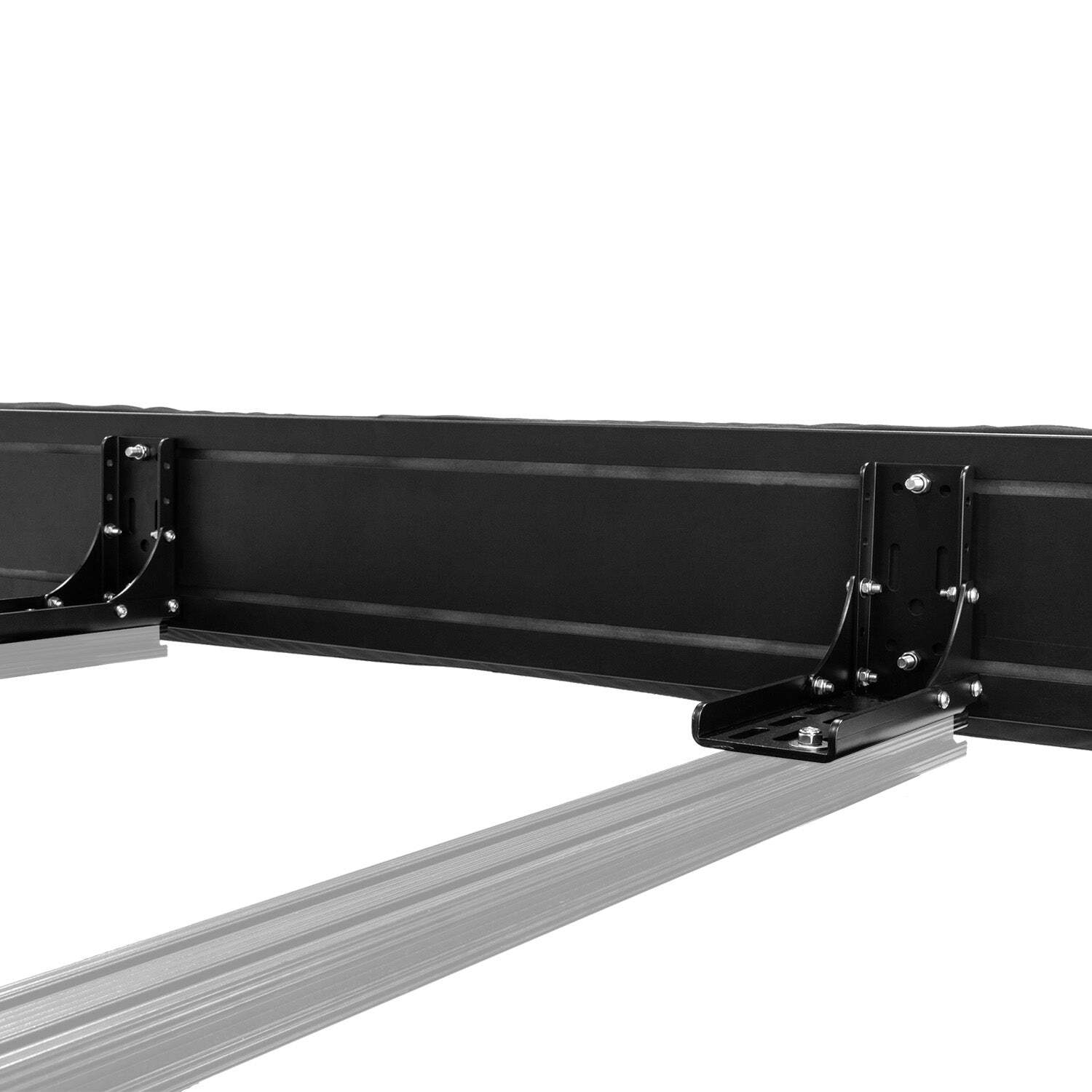

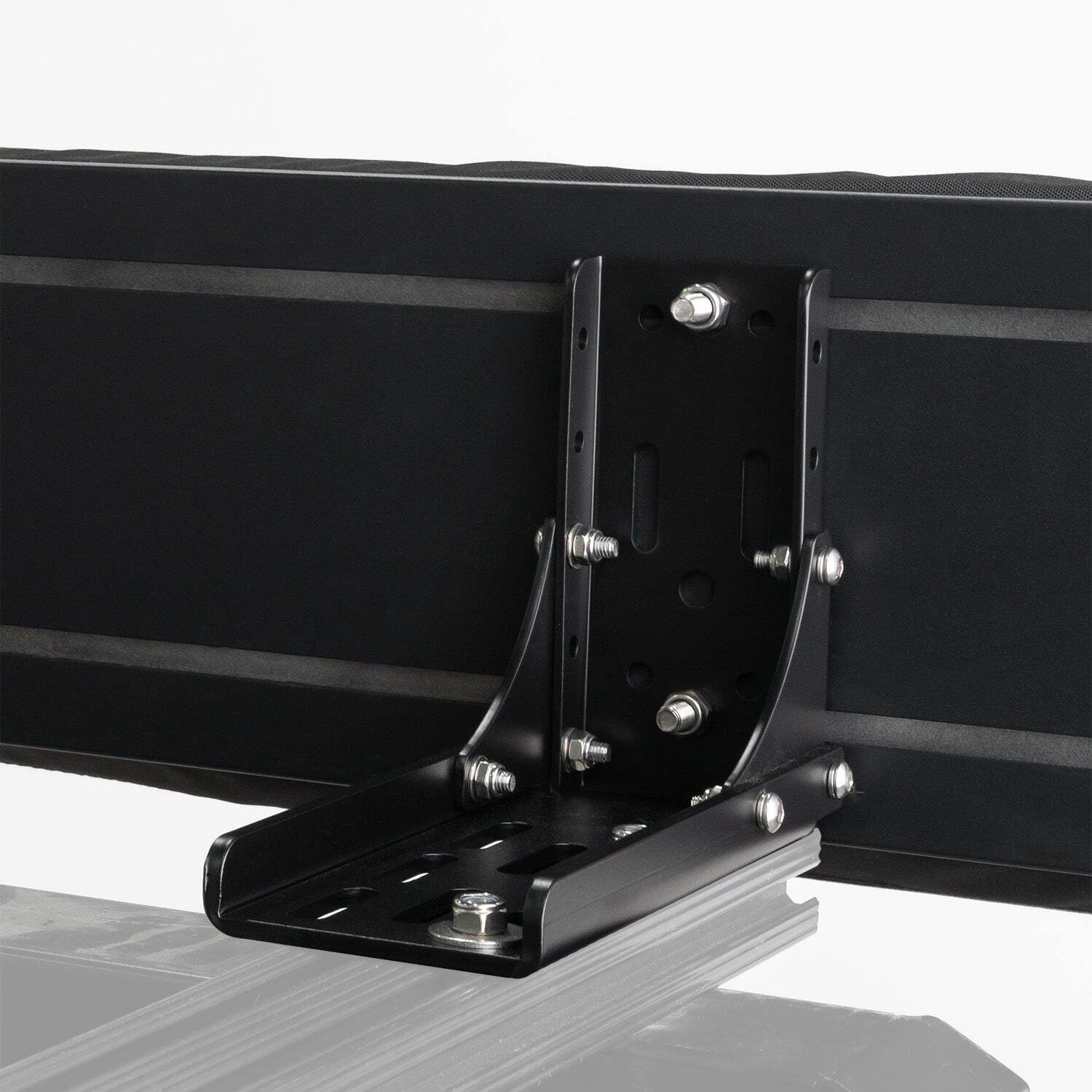

- Height-adjustable brackets suits a wide range of setup types

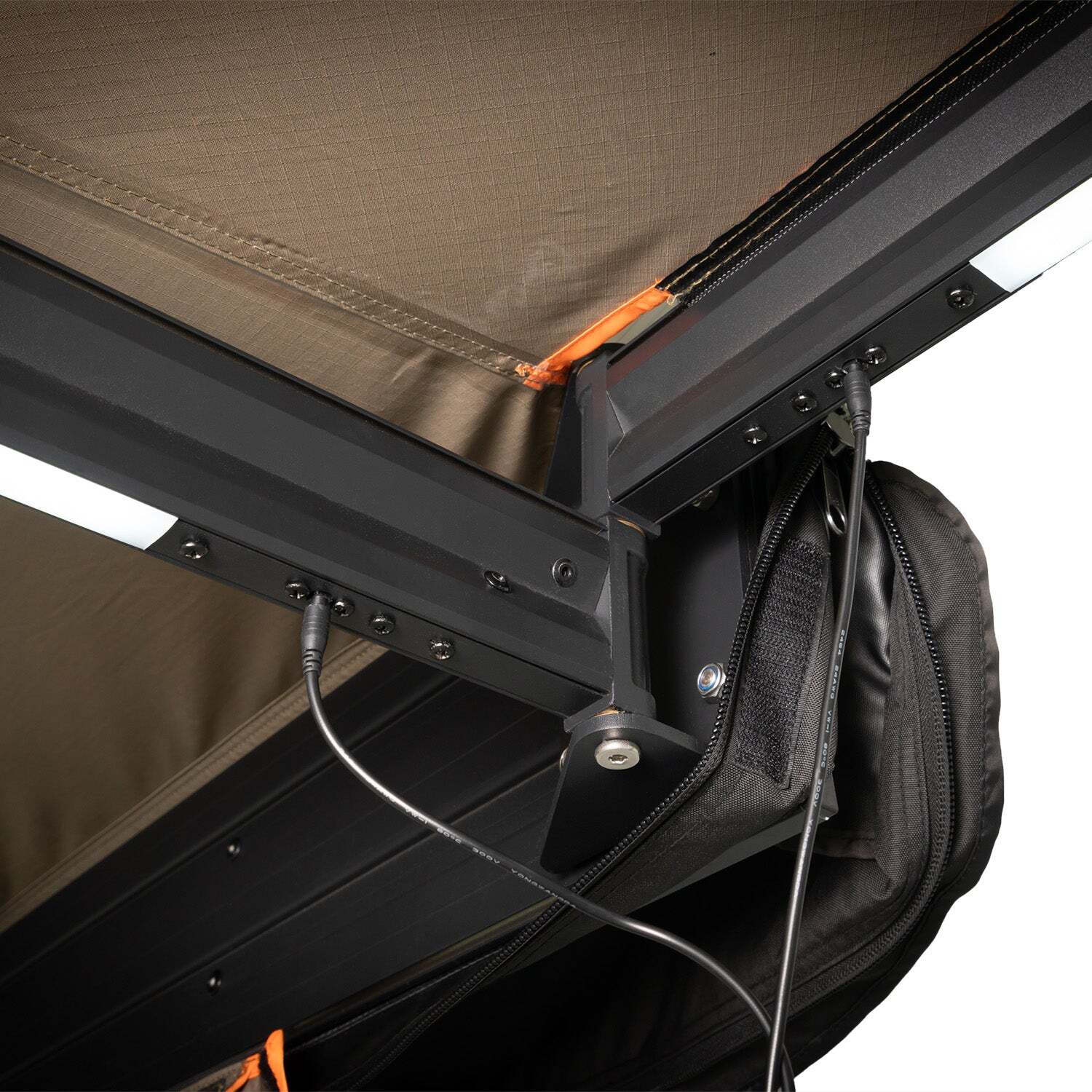

- X-tube aluminium alloy rafter arms, backing plate & hinges designed using state-of-the-art techniques & simulation for incredible strength & durability

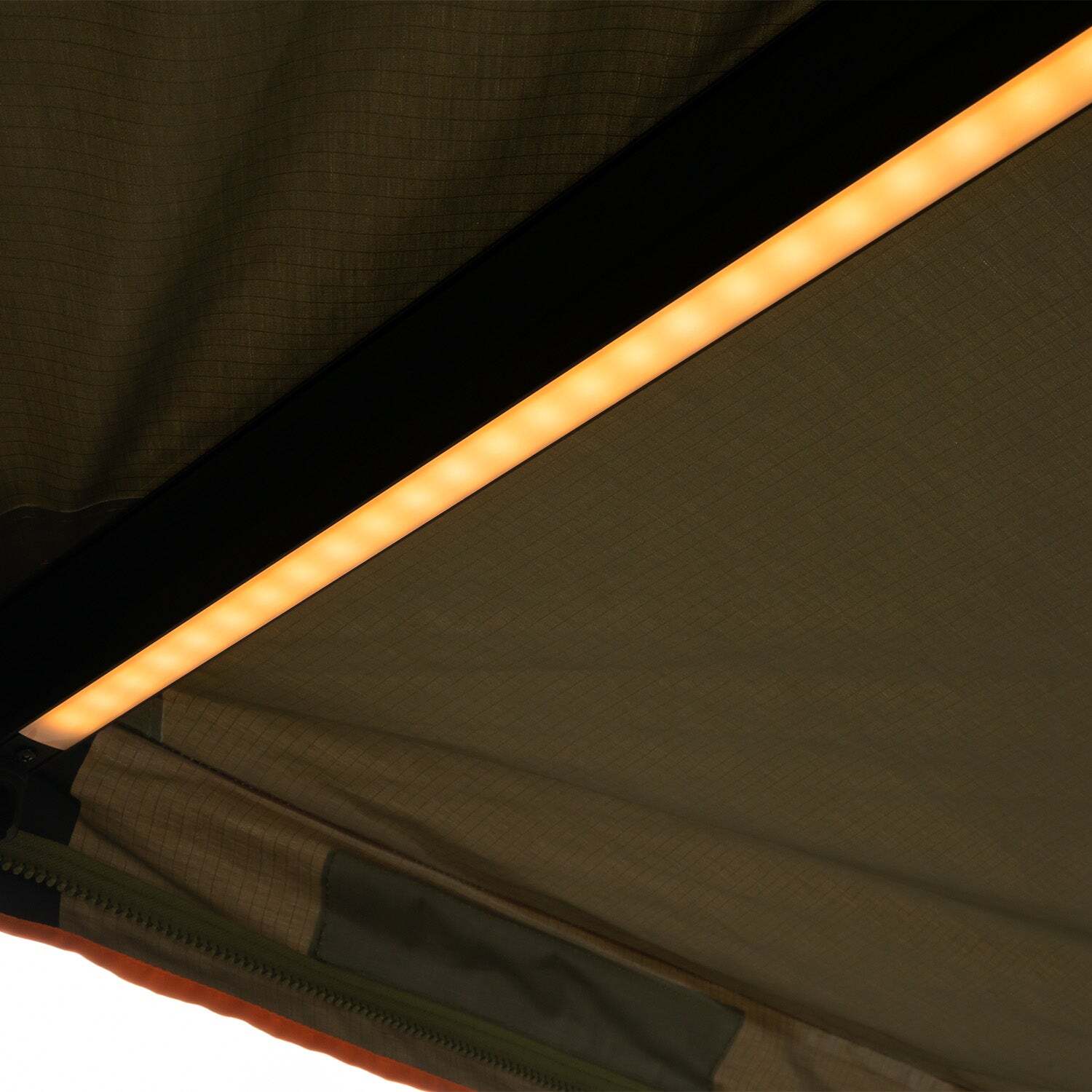

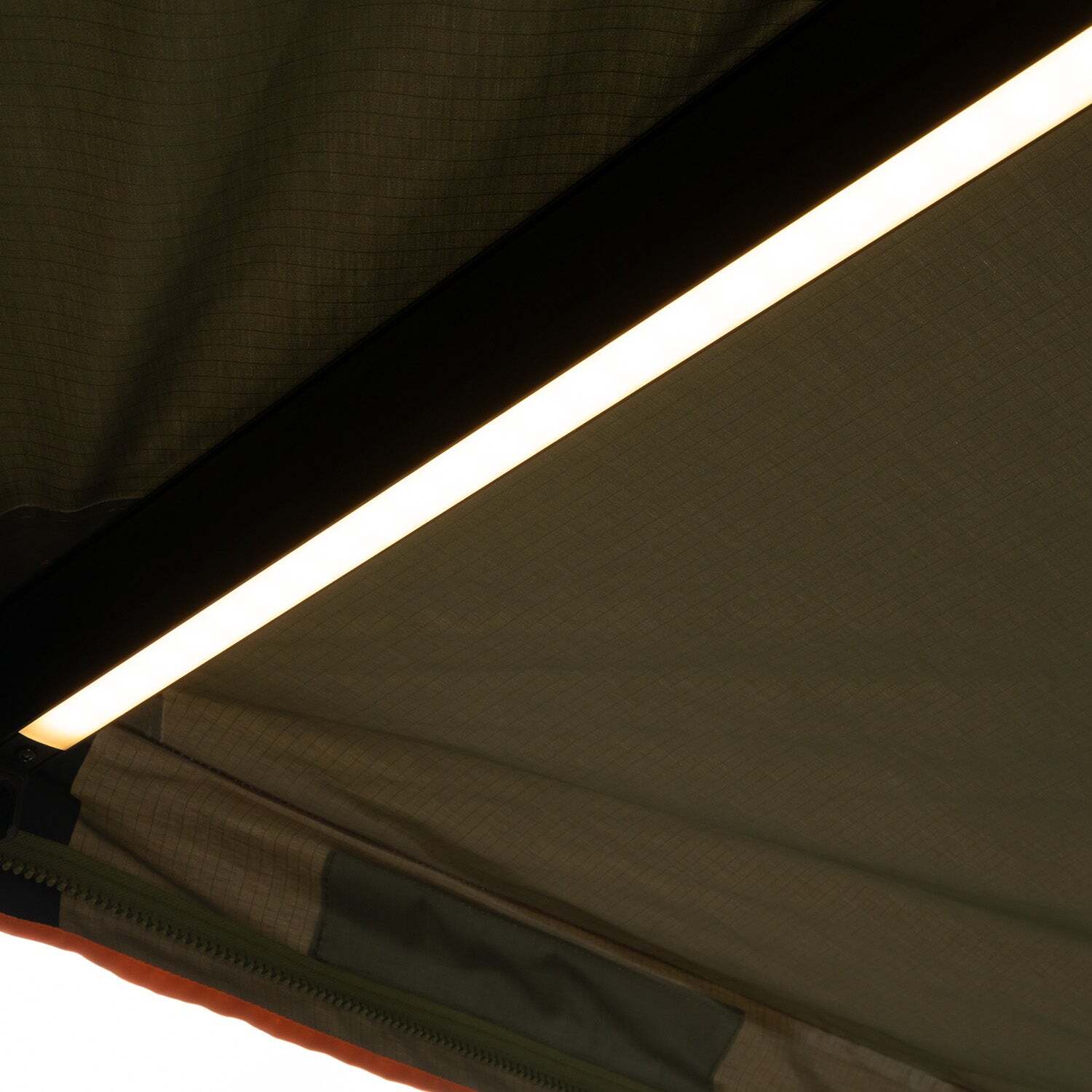

- Integrated dual-colour (white and amber) dimmable LED lights on four rafter arms. (power bank not included)
- Additional height for headroom and water run off
- Heavy-duty 320gsm ripstop polycotton canvas with 3000mm waterhead rating
- All parts are designed to be replaceable for easy and low cost repair
- Compatible with rooftop tent awning bracket kits (T050801945 and T050801946, sold separately)
- Wall kits available (T050801744A and T050801744PV sold separately)
Specifications
- Freestanding Wind Rating: 30 km/hr
- Max. Head Height: 2600mm
- Suits Vehicle Height: 1400 to 2600mm
- Mount Type: Side
- Fabric Material: 320gsm Ripstop Polycotton Canvas
- Frame Material: Extruded Aluminium Alloy
- Transit Cover Material: 820D Polyester Oxford
- Waterhead Rating: 3000mm
- UPF Rating: 50+
- External Dimensions: 6160L x 2070W x 2300H mm
- Packed Dimensions: 2220L x 160W x 180H mm
- Coverage: 8.2 sqm
- Weight: 21.0 kg
- Warranty: 3 Years
SKU | T050801739 |
Barcode # | 9315795130070 |
Brand | Darche |
