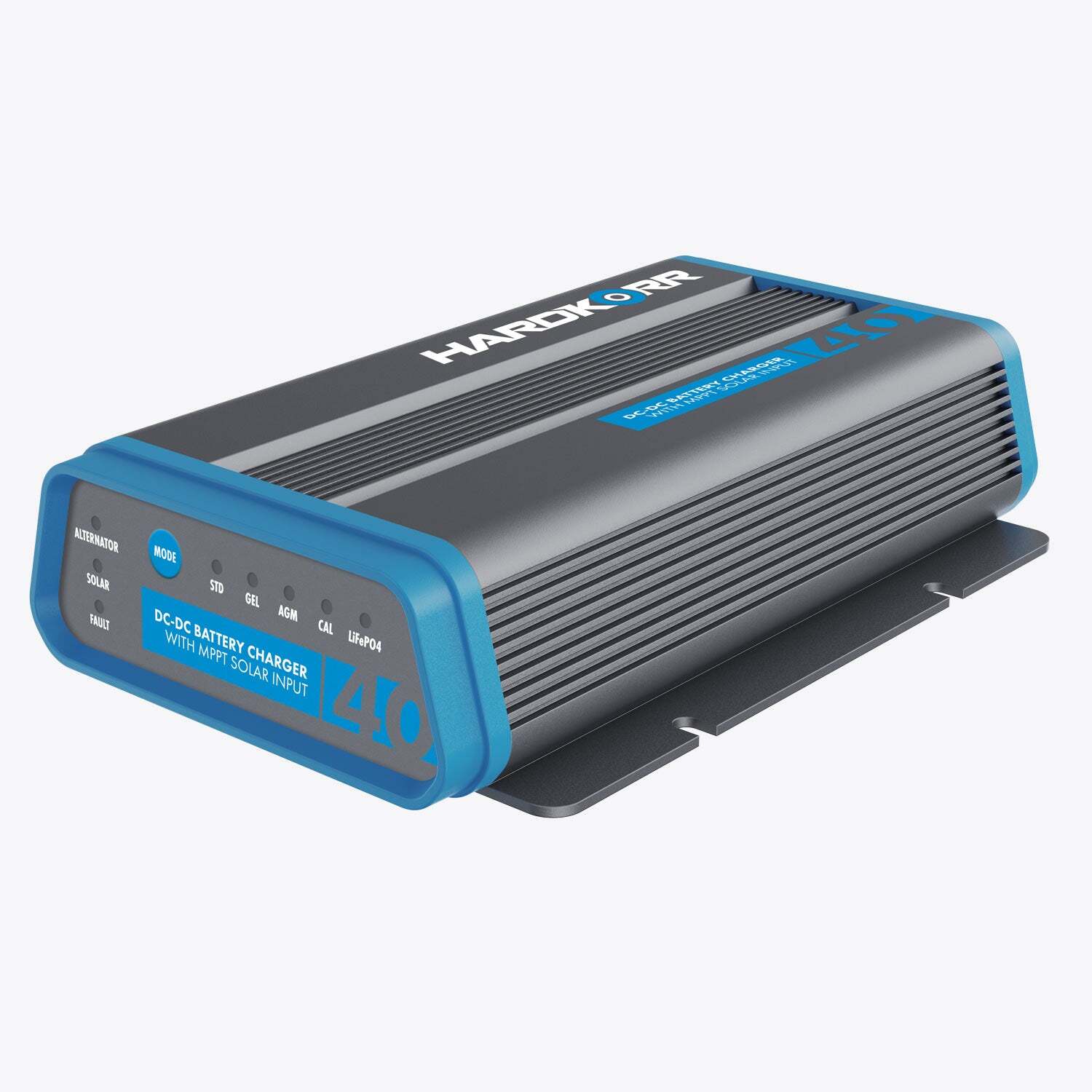

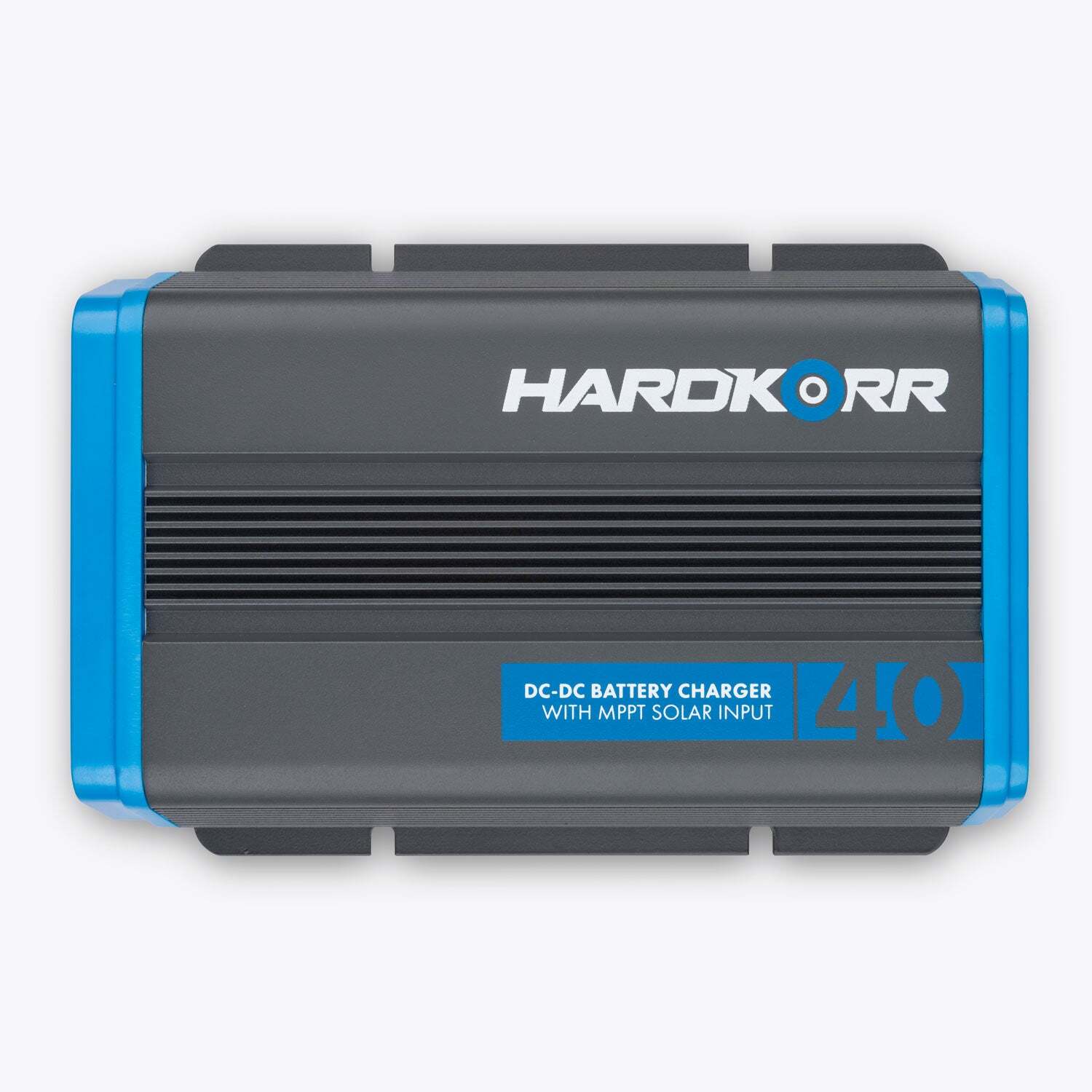

Whether you’re touring the country with the family in tow or just trying to keep your drinks icy cold between job sites, HardKorr's DC-DC charger is one of the easiest ways to keep your batteries topped up without being tethered to a mains power supply. The charger can be used on a range of batteries including both 12V SLA, AGM, gel, calcium, and LiFePO4 systems.

The DC-DC works by converting the power from your alternator into a charge voltage that carefully, but quickly, suits the status, and chemistry of your auxiliary battery all without affecting your vehicle’s starter battery. Designed to work on most vehicles, it’s compatible with either traditional or fixed/smart alternators and will feed up to 40A into your batteries per hour.

There’s a dedicated Anderson-style plug coming from the unit for the inbuilt Maximum Power Point Tracking (MPPT) solar regulator function. The charger will use the power coming from the solar input when it detects it as either the only available power source, or if the solar input exceeds the power being produced by the vehicle. Able to regulate up to 40A, it’s able to handle solar up to 15% more efficiently than traditional Pulse Width Modulation (PWM) regulators.

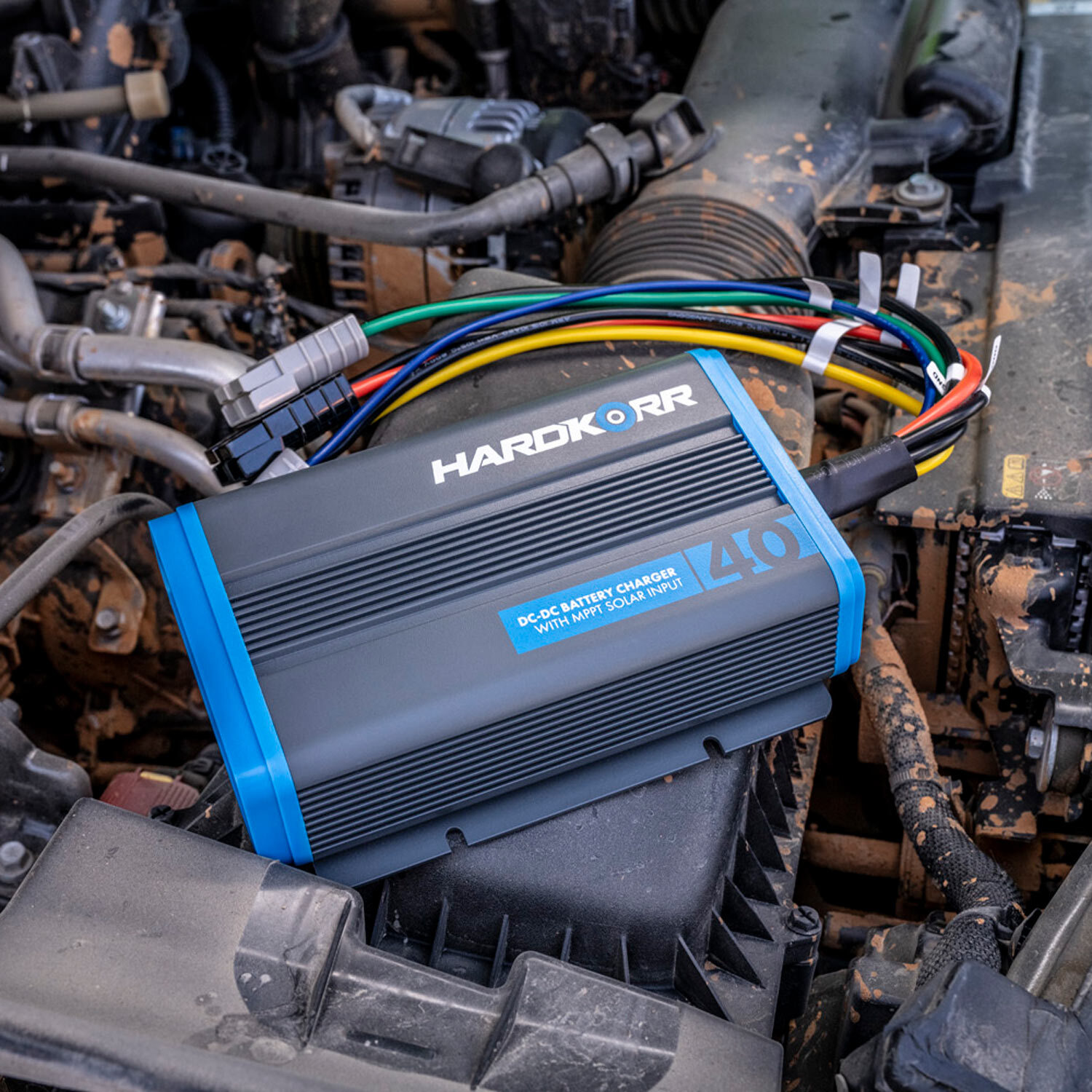

With a high heat tolerance, the charger can be mounted in most places including under the bonnet. This is particularly useful in vehicles that have the space for an additional battery in the engine bay, like in Landcruisers and Patrols, helping to not only reduce voltage drop but also free up some space in the back of the vehicle.

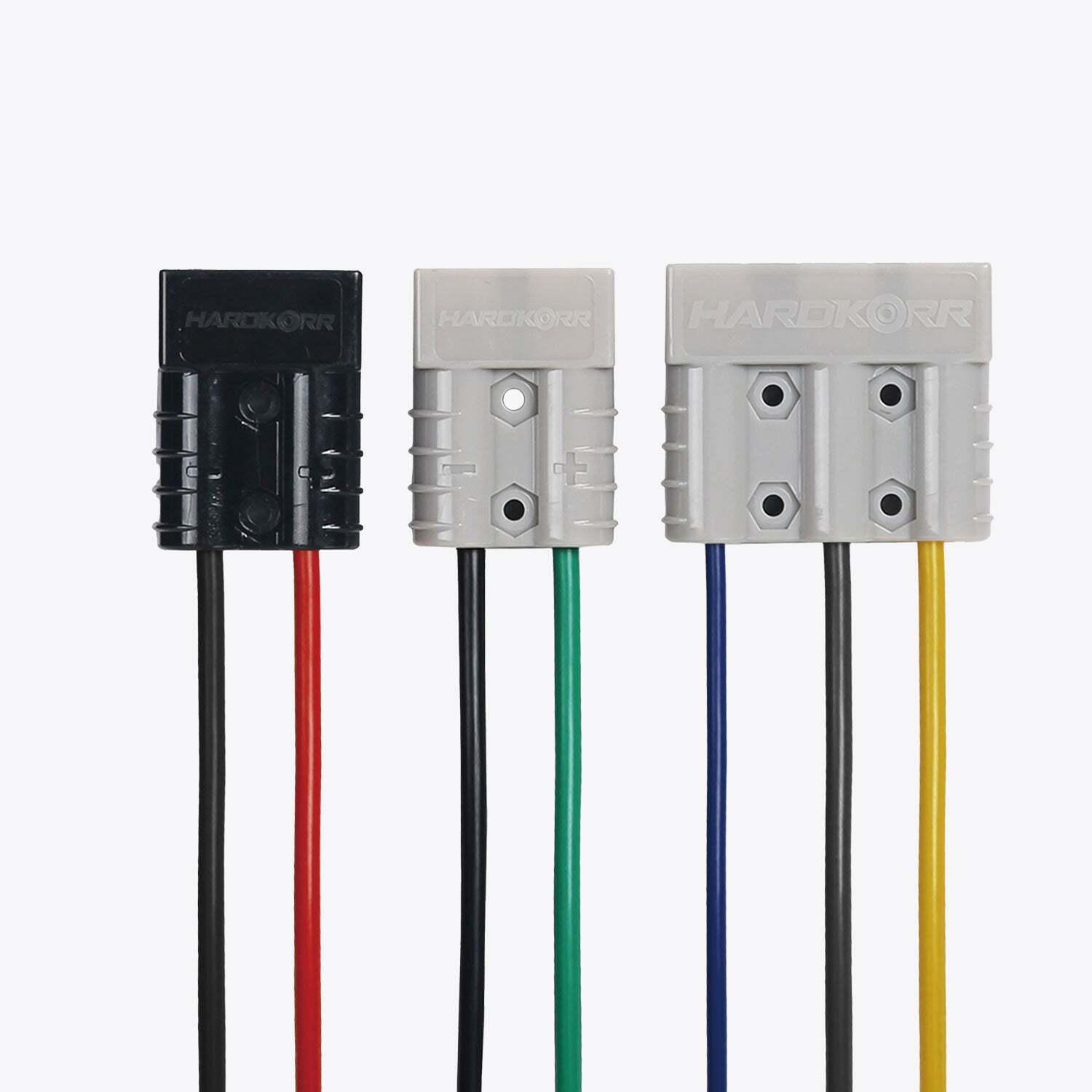

The charger comes with three pre-wired Anderson-style plugs to make installation simple. The black plug connects directly to the auxiliary battery, the traditional grey plug is the dedicated solar input, whilst the three-pin Anderson plug can be used to quickly connect to the vehicle.

The HardKorr Guarantee

All Hardkorr products are manufactured using the highest quality materials. They are confident that they are the most durable in the market and will give you many years of reliable service. HardKorr stand behind this product with a comprehensive 2 Year Australian warranty.

(HKPDCDC40UB)

Input

  • DC Battery Input: 9-32V
  • MPPT Solar Input Voltage: 10-32V
  • Maximum Input Current: 47A

Output

  • Maximum Output Power: 40A

Solar Input

  • Minimum Solar Input: 30W

Protection and Operation

  • Ingress Protection: IP66
  • Operating Temperature: -20°C – 80°C

Compatibility

  • 12V SLA, AGM, Gel, Cal, LiFePO4 batteries

Dimensions

  • 183mm (L) x 129.3mm (W) x 46.4mm (H)

Certifications

  • IEC/EN 61000-6-1

Pack Contents

  • 1x 40A DC-DC Charger With Pre-Wired Three-Pin Anderson Plug
SKU HKPDCDC40UB
Barcode # 9350466004465
Brand HardKorr
